Vaginal Camera Digital Electronic Colposcope, for Hospitals, Clinics, Beauty Salons, Private Doctors, Self-exam to find Disease of Cervix earlier.
Standard Configurations
|
1 pc
|
main unit
|
|
2 pcs
|
disposable heads (one small size + one middle size)
|
|
1 pc
|
cable connected to Television
|
|
1 pc
|
USB cable
|
|
1 pc
|
user's manual
|
Optional
|
1 pc
|
TF Card
|
|
1 unit
|

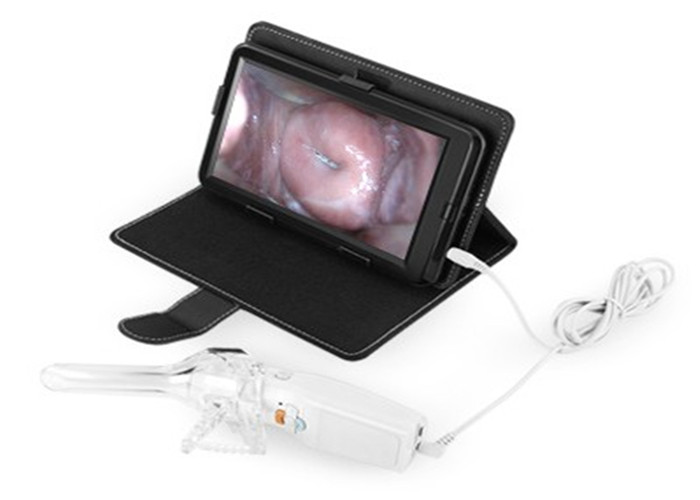

10 inch or 7 inch Medical Screen
|
|
1 pc
|
Black bag
|
Specifications

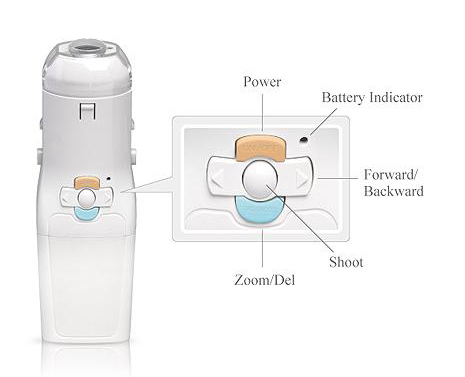

Main unit
|
Power Supply
|
DC 4.5V, AAA batteries (×3)
|
|
Output Signal
|
PAL color system, AV(video)signal
|
|
Normal Working Conditions
|
temperature:15°C—30°C
|
|
humidity:≤93%RH
|
|
pressure:700hPa—1060hPa
|
|
Conditions of Storage and Transport
|
temperature:-20°C~+45 °C
|
|
humidity:90%RH
|
|
pressure:700hPa—1060hPa
|
|
Weight
|
about 50g (batteries non-included)
|
|
Dimensions (L×W×H mm)
|
126×40×34
|
|
Safety Class
|
internal battery source, BF type
|
|
Technical Index
|
effective range of observation
|
70mm~100mm
|
|
angle of observation
|
20°, permit error -10%,no upper limit
|
|
resolution
|
2.5 lp/mm, permit error -10%,no upper limit
|
|
Memory
|
≥16M
|
Disposable head
|
size
parameters
|
S
|
M
|
Notes
|
|
Outline Dimension
|
Length
(movable bill)
|
98±2
|
109±2
|
Size S is for female before childbirth or age above 50s
Size M is for female after childbirth and age below 50s.
|
|
Width
(of the bill)
|
20±1
|
27±1
|
|
Height of Front Outside Mouth
|
Minimum
|
31±5
|
40±5
|
|
Maximum
|
60±5
|
67±5
|

|
